Type
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore and stroke
88 x 66 mm
Compression Ratio
11:1
Power
73 hp (53.6 kW) @ 8,250 rpm
Torque
48.1 lb-ft (65.2 Nm) @ 7,000 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body with Ride-by-Wire system
Exhaust system
Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Gearbox
6 speed
Primary drive
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Ratios
Straight cut gears, Ratio 1.85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel
Spoked aluminium wheel 3.00" x 18"
Front tyre
Pirelli MT 60 RS 110/80 R18
Real suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel
Spoked aluminium wheel 5.50" x 17"
Rear tyre
Pirelli MT 60 RS 180/55 R17
Wheel travel
150 mm / 150 mm (5.9 in / 5.9 in)
Front brake
Ø330 mm disc, radial 4-piston caliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating caliper with Bosch Cornering ABS as standard equipment

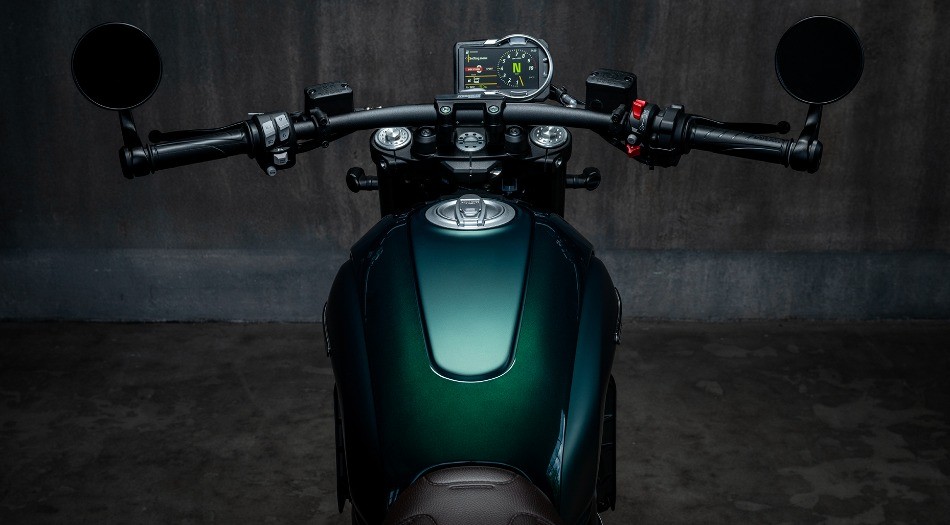

Instrumentation
4.3" TFT colour display
Kerb weight
191 kg (421 lb)
Wet weight
176 kg (no fuel)
Seat height
795 mm (31.3 in) 810 mm (31.9 in) with high seat accessory 780 mm (30.7 in) with low seat accessory
Wheelbase
1.449 mm (57 in)
Rake
24°
Trail
108 mm
Fuel tank capacity
14,5 l
Number seats
2
Safety equipment
Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Daytime Running Light*
Standard equipment
4.3" TFT color display, ride by wire, full LED lighting system, LED turn indicators, USB socket under the seat, variable section flat handlebar, bar-end rearview mirrors, Ducati Performance LED turn indicatos, sporty front mudguard, side number plates, sporty tail, dedicated seat, dedicated livery, spoked wheels
Ready for
Ducati Multimedia System, Ducati Quick Shift
Warranty
24 months unlimited mileage
Valve clearance check
12,000 km (7,500 mi)
Standard
Euro 5
Co emissions
120 g/km
Consumption
5.2 l/100 km
Notes
Only for countries where Euro 5 standard applies. *Please check with your dealer product availability Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
